Case Study: 4m × 2m Outdoor LED Screen for Live Sports Viewing (UK)
A UK customer wanted guests to watch live matches outdoors on a screen that stays bright into the evening and packs down for transport. Here is the exact 4m × 2m P3.9 package we delivered — configuration, control system, spares and budget.
From US$100 — final price depends on your size, pixel pitch and finish. Contact us for an exact quote.
Most buyers researching an outdoor LED screen for sports viewing have the same questions: is 4m × 2m big enough, is P3.9 the right pitch, what exactly comes in the package, and what does the whole thing realistically cost? This page answers all of them with a real delivered project instead of theory.
The customer runs outdoor match screenings for guests in the UK. They needed a screen bright enough for daylight and dusk, sharp enough for fast-moving sport, and simple enough to assemble, dismantle and move. EKINTRY supplied a complete factory-direct 4m × 2m P3.9 outdoor package — screen, control system, ground stands, spares and flight cases.
Who custom screens are for
- Pubs, bars and hospitality venues screening live sport outside.
- Event and rental operators adding a sports-viewing screen.
- Clubs and private venues hosting match nights in a garden or yard.
- Buyers comparing 4m × 2m P3.9 outdoor packages and prices.
The customer and the brief
The customer hosts outdoor viewings of live matches — kickoffs that start in daylight and run into the evening, with guests seated and standing from about 4 metres back. The brief was specific: a screen large enough that a crowd of 80–200 people can follow the game comfortably, outdoor-rated for British weather, freestanding (no wall or building fixings), and packable for transport between sites.
Why 4m × 2m at P3.9
A 4m × 2m screen is the sweet spot for sports viewing: at P3.9 it resolves to roughly 1024 × 512 pixels — sharp enough that the ball, score graphics and ticker stay clean from 4 metres and beyond, without paying for a finer pitch nobody would notice outdoors. Smaller screens (2m × 2m or 3m × 2m) work for small groups, but guests several metres back lose the game.
The exact package we delivered
This is the complete configuration shipped for this project — useful as a reference for what a serious 4m × 2m outdoor package includes:
- 16 × 500mm × 1000mm outdoor cabinets (P3.9, RS rental series) forming the 4m × 2m screen.
- Novastar VX400 Pro video processor — all-in-one input switching, scaling and sending.
- Novastar A5S Plus receiving cards, pre-installed in the panels.
- NovaLCT + ViPlex Express control software.
- Ground standing frames so the screen is freestanding — no rigging or fixings.
- Spare LED modules and power-supply boxes, covered by a 5-year warranty.
- Wheeled flight cases (6 panels per case) for transport and storage.
Outdoor performance for match nights

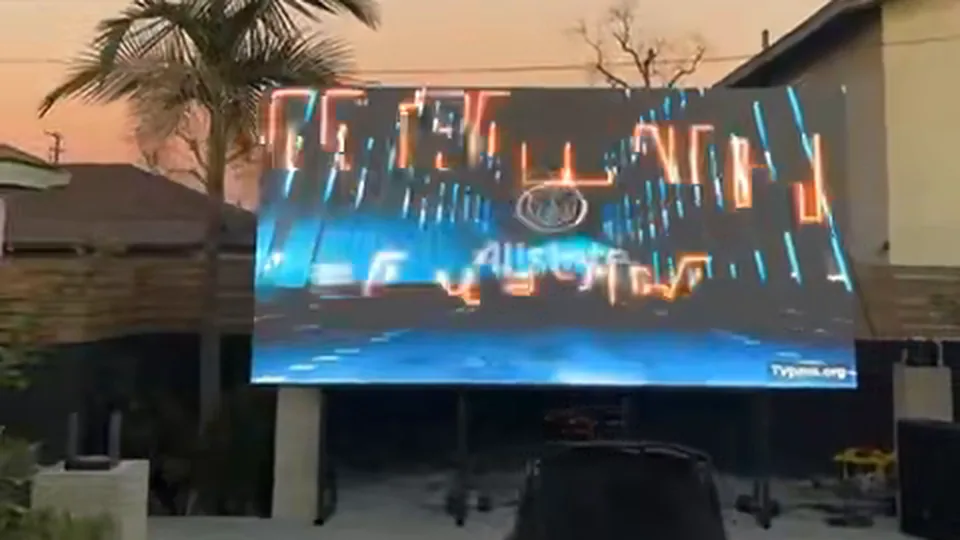

Sports viewing is a hard test for an outdoor screen — daylight at kickoff, dusk by full time, and a crowd filming on phones. The delivered panels are:
- High brightness (≈4,500 nits class) so the picture holds up in daylight.
- Weather-resistant, outdoor-rated cabinet design for rain and dust.
- High refresh (3,840 Hz) so the match looks clean on camera and any stream.
- Designed for heat dissipation over long match-day sessions.
What the package cost
The complete package — screen, processor, receiving cards, software, ground stands, spares and flight cases — came to around US$11,000 ex-works. Door-to-door DDP shipping from Shenzhen to the UK was quoted separately at roughly US$2,000–2,400 depending on air or sea. Prices vary with panel series, spares level and freight rates, but this is a realistic anchor for a 4m × 2m P3.9 outdoor budget.
Setup: freestanding on ground stands
The screen stands on ground-support frames, so it works on a patio, lawn or yard with no structural work — position it for the crowd, cable power and signal, and it is match-ready. Between events the cabinets pack into four wheeled flight cases that travel in a van. Assembly and dismantling are quick-lock, repeatable jobs rather than a rigging project.
Thinking about a similar screen?
If your crowd, space or budget differs from this project, the size and budget guides below show how the recommendation shifts — and we will spec the exact package for your case from your project details.
| Screen | 4m × 2m, P3.9 outdoor, RS rental series |
|---|---|
| Resolution | ≈1024 × 512 px |
| Cabinets | 16 × 500mm × 1000mm |
| Control | Novastar VX400 Pro, A5S Plus cards |
| Mounting | Ground standing frames, freestanding |
| Transport | 4 wheeled flight cases (6 panels/case) |
| Indicative budget | ≈US$11,000 + DDP shipping to the UK |
| Screen size | Suitable use | Typical audience | Notes |
|---|---|---|---|
| 2m × 2m | Small events / budget | 20–50 people | Entry-level outdoor screen |
| 3m × 2m | Mobile events / sport | 50–100 people | Better for guests metres back |
| 4m × 2m | Sports viewing / festivals | 80–200 people | This project — strong impact |
| 6m × 3m | Large outdoor events | 200+ people | Needs stronger structure & planning |
| Pixel pitch | Recommended distance | Best for |
|---|---|---|
| P2.5 | 2.5 m+ | Close viewing, premium detail |
| P3.9 | 4 m+ | Outdoor sport, events, rental — this project |
| P4.8 | 5 m+ | Larger outdoor viewing areas |
| P6 | 6 m+ | Advertising & long-distance viewing |
| Budget level | Possible option | Notes |
|---|---|---|
| Around $5,000 | 2m × 2m entry package | Small-group outdoor screen |
| Around $11,000 | 4m × 2m P3.9 package (this case) | Screen + control + stands + spares + cases |
| Higher | Larger sizes or XS Series cabinets | Bigger crowds, easier maintenance |
Project summary
| Client type | Outdoor sports-viewing / hospitality customer |
|---|---|
| Country | United Kingdom |
| Application | Live match screening for guests outdoors, daylight into evening |
| Screen size | 4m × 2m (16 × 500mm × 1000mm cabinets) |
| Pixel pitch | P3.9 outdoor, high refresh (3,840 Hz) |
| Control system | Novastar VX400 Pro + A5S Plus receiving cards |
| Installation type | Freestanding on ground standing frames |
| Viewing distance | 4 m and beyond |
| Key requirement | Daylight-readable, weather-resistant, quick assembly, transportable |
| Package | Screen + control + stands + 5-year-warranty spares + flight cases, DDP to the UK |

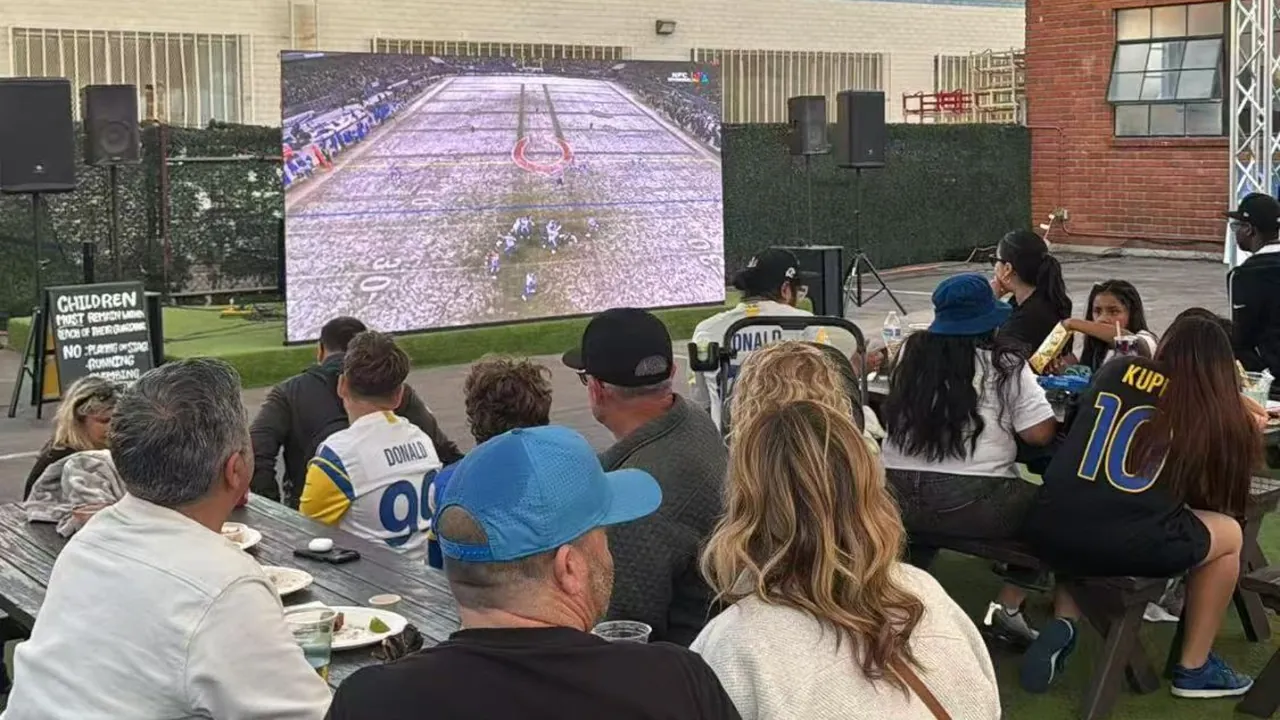

Why this solution worked: The 4m × 2m size matches an 80–200 person crowd, and P3.9 keeps fast-moving sport sharp from 4 metres back. Ground stands made the screen freestanding on any surface, and the flight-case package means the customer can move and rebuild it between match nights. The customer sent us photos and video of match nights — guests at the tables, game on screen, bright and clean from daylight into dusk.
Send us your project details
To recommend the right screen size, pixel pitch, cabinet type and shipping, please send us:
- Required screen size (or your crowd size and space).
- Installation location, and indoor or outdoor.
- Closest viewing distance / how far the crowd stands.
- Event type and whether the screen must be portable.
- Budget range and destination country for shipping.
Frequently Asked Questions
Is a 4m × 2m LED screen big enough for watching sport outdoors?
Yes — 4m × 2m suits roughly 80–200 people. In this UK project, guests followed live matches comfortably from about 4 metres back. For small groups a 3m × 2m or 2m × 2m can work; for 200+ people step up to 6m × 3m.
What does a complete 4m × 2m P3.9 outdoor LED screen cost?
This delivered package — 16 outdoor cabinets, Novastar VX400 Pro processor, receiving cards, ground stands, 5-year-warranty spares and flight cases — was around US$11,000, plus roughly US$2,000–2,400 DDP shipping from Shenzhen to the UK. Exact pricing depends on series, spares and freight.
Why P3.9 instead of a finer pixel pitch?
P3.9 is the balanced choice for outdoor sport viewed from 4 metres or more — the picture is already sharp at that distance, so a finer pitch adds cost without visible benefit. Finer pitches matter when viewers stand closer than about 3 metres.
Can the screen be used in daylight and in rain?
The panels are high-brightness (≈4,500 nits class) so the match stays readable in daylight, and the cabinets are outdoor-rated and weather-resistant by design — built for typical UK outdoor conditions.
How is the screen installed without a wall or rigging?
It stands on ground-support frames, completely freestanding — patio, lawn or yard. No structural fixings are needed, and the quick-lock cabinets make assembly and dismantling a repeatable two-person job.
How long does shipping to the UK take?
For this project, door-to-door DDP options from Shenzhen to the UK were quoted by air and by sea — sea is cheaper, air is faster. We handle export, freight and import so the screen arrives ready to assemble.
