Custom Size LED Screen for Shops, Events and Commercial Spaces
Tell us your wall size and where it will go. We build the LED screen to your exact dimensions and help you choose pixel pitch, brightness and a practical budget.

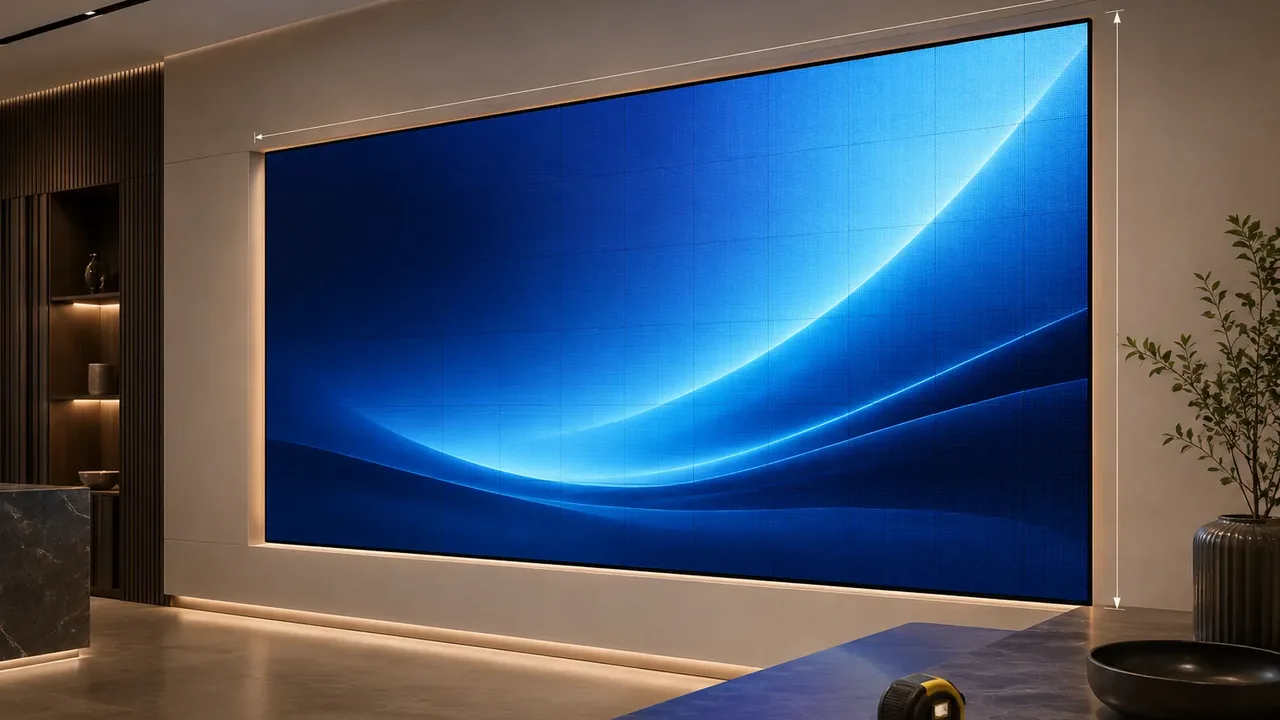

A custom size LED screen is an LED display built to your exact width and height instead of a fixed off-the-shelf panel. Because an LED screen is assembled from modular cabinets, it can be sized to fit a storefront window, a stage backdrop, a lobby wall or an irregular column — without the aspect-ratio limits of an LCD panel or projector.
This page is for buyers who already know roughly where the screen goes but need help turning a wall measurement into a real specification and budget. Send your size, application and viewing distance and EKINTRY will recommend a display type, pixel pitch and an estimated price range, then quote against your actual project.
Who custom screens are for
- Retail stores and shop fronts that want a bright window or façade display sized to the storefront.
- Restaurants, hotels and shopping malls needing menu, promotion or lobby screens.
- Schools, churches, conference and meeting rooms needing a stage or front-of-room wall.
- System integrators and resellers sourcing custom-size panels factory-direct for client projects.
Which LED display type fits a custom size?
The right product depends on where the screen is mounted and how close people stand. We help you match the type to the environment rather than selling a single configuration.
- Indoor fine-pitch LED (P1.2–P2.5) — close-viewing lobbies, meeting rooms, retail interiors.
- Standard indoor LED (P2.6–P4) — larger rooms, halls, stage backdrops.
- Outdoor / window-facing LED (P4–P10, high brightness, IP-rated) — storefronts, façades, billboards.
- Flexible or curved modules — columns, curved walls and creative shapes.
How the size and pixel pitch are decided
Two numbers drive the whole specification: your physical size (width × height) and your minimum viewing distance. A useful rule of thumb is about 1 metre of comfortable viewing distance for every 1 mm of pixel pitch — a 2.5 mm screen looks clean from roughly 2.5 m away, while a façade seen from 10 m can use a coarser, more cost-effective pitch.
You do not need to calculate this yourself. Send the wall dimensions and where viewers stand and we return a recommended pitch and the nearest buildable size, since the screen is assembled from whole cabinets.
What drives the price of a custom size LED screen
There is no fixed price for a custom screen because every project is assembled to size. Instead of a misleading single number, here is what actually moves the budget so you can plan realistically:
- Total area (m²) — the biggest single factor.
- Pixel pitch — finer pitch means more LEDs per m² and higher cost.
- Brightness and IP rating — outdoor / window-facing screens cost more.
- Cabinet type and mounting — fixed install, wall mount or mobile stand.
- Control system, spares and installation/commissioning support.
Factory-direct supply, export packing and shipping
EKINTRY supplies custom screens factory-direct. International orders are crated in reinforced wooden cases sized to the cabinets, with spare modules and tools included, and we provide installation documents and remote setup guidance after delivery.
Common mistakes to avoid
A few choices cause most regret on custom screen orders. Avoiding them keeps your budget and result on track:
- Choosing a pitch that is too fine for the viewing distance — paying for resolution nobody sees.
- Forcing an exact size that wastes part-cabinets instead of the nearest buildable size.
- Using an indoor screen outdoors or in a sun-facing window (brightness/IP too low).
- Ordering without confirming mounting, power and content source on site.
| Pixel pitch | P1.2 – P10 (indoor & outdoor) |
|---|---|
| Brightness | 600–1000 nits indoor · 5000–8000 nits outdoor |
| Size | Built to your width × height from modular cabinets |
| Mounting | Fixed install · wall mount · floor / mobile stand |
| Use | Indoor · outdoor · window-facing · curved / shaped |
Information we need to quote you
- Screen width and height (or the wall/area you want to cover).
- Indoor, outdoor or window-facing.
- Approximate viewing distance (closest viewers).
- Application — shop front, lobby, stage, meeting room, etc.
- Delivery country, and a photo or drawing of the location if possible.
Frequently Asked Questions
How much does a custom size LED screen cost?
Price depends mainly on total area, pixel pitch and whether it is indoor or outdoor — small indoor screens typically start in the low thousands of US dollars, while large or fine-pitch projects cost much more. Send your size and application and we return an estimated budget range, then a firm quote for your project.
What size LED screen do I need for my space?
Start from the wall or area you want to cover and how far away viewers stand. Send those two things and we recommend the nearest buildable size and a suitable pixel pitch — the screen is assembled from whole cabinets, so we fit it as closely as possible to your dimensions.
What pixel pitch should I choose?
As a rule of thumb, allow about 1 metre of viewing distance per 1 mm of pitch. Close-viewing interiors use P1.2–P2.5; larger rooms use P2.6–P4; façades and billboards can use P4–P10 to control cost. We confirm the right pitch from your viewing distance.
Can you build a non-standard or custom-shaped size?
Yes. Because the screen is modular it can be built to non-standard rectangles, and flexible or curved modules allow columns, curves and creative shapes. Share the dimensions or a drawing and we advise what is buildable.
What changes between indoor and outdoor screens?
Outdoor and window-facing screens need much higher brightness and an IP-rated, weatherproof cabinet, which affects both specification and price. Indoor screens prioritise finer pitch and contrast for close viewing.
Do you ship internationally and how is it packed?
Yes. Screens are crated in reinforced wooden cases with spare modules and tools, and we provide installation documents plus remote setup support. Tell us your delivery country for shipping guidance.
